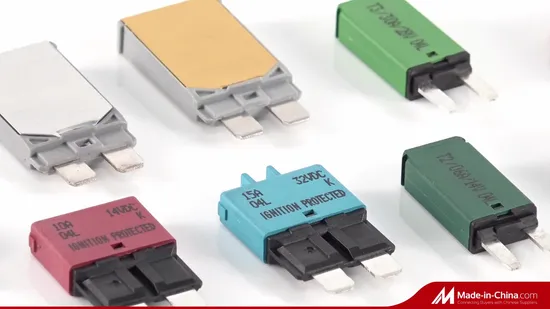

Snap Action Current Protector Battery Pack Protector Circuit Breakers
Snap Action Current Protector Battery Pack Protector Circuit Breakers
Description
Basic Info
| Model NO. | E31/E32/E33 |
| Reset Type | T1,Auto Reset/T2,Modified/T3,Manual |
| [email protected]ºC | 100%Hold,135%Trip(Percent of Rating) |
| Maximun Interrupting Capackty | [email protected]/[email protected]/[email protected](5-30A Versions) |
| Maximun Current & Voltage Ratings | [email protected]/[email protected] |
| Compliances | SAE J553,SAE J1171(Ignition Protected) |
| Dimensions(mm) | 25*18.8*17.8*10/25*6.3*17.8*10/25*12.5*17.8*10 |
| Transport Package | Stand Packing |
| Specification | E3 |
| Trademark | Victor |
| Origin | China |
| HS Code | 8536300000 |
| Production Capacity | 50000/Month |
Product Description
E3 Series
|
Circuit breaker Specifications | |
| Childs vehicles batteries for overcurrent and short circuit protection, bimetal structures can protect the security of quick response,compact design, the three terminal versions available, can be connected in the electrical circuit or the built-in lead-acid within the battery. | |
| Rating: | 5-30A, 14-28Vdc |
| Operating Tempeature rating: | -40ºF(-40ºC) to 185ºF(85ºC) |
| Stortage Temperature rating: | -40ºF(-40ºC) to 260ºF(125ºC) |
| Materials: | UL-Rate 94V-0 thermoplastic body; Tin-plated cooper alloy terminals. |
| Marking: | Color-code to amperage available; aluminum cover is plain silver |
| Termination: | 5.1 mm wide blades compatible with ATC type fuse block; 6.3 mm quick connector compatible with .25"tab |
| Compliance: | SAE J553 (all series); SAE J1171 Ignition protection (only for platic cover) E311 (T1 cross to ACB/CCB) E311-43 (T1) cross to UCB E321 (T2) cross to CBB/FCB E332 (T3) cross to CB227 |
| Model Code: | |
| 1 Type | 1: Type 1: auto reset 2: Type 2: modified reset 3: Type 3: manual reset |
| 2 Body | 1: Aluminum cover 2: Plastic (PBT) cover |
| 3 Rating | 5-30A 05: 5A; 10: 10A 15:15A; 20:20A 25:25A; 30:30A |
| 4 Voltage | 1: 125Vac 2: 250Vac 4: 14Vdc (T1, plastic cover) 8: 28Vdc (T1/T2, aluminum cover; T3, plastic cover) 6: 6Vdc |
| 5 Terminal | 2: QC, 6.3x9.1mm 3: 3 section breakable, 5.1x18.5mm 4: 280 type ATC fuse block, 5.1x12.5mm 5: QC, 6.3x9.1 mm with 4 mm dia. hole |
|
|
|
|
