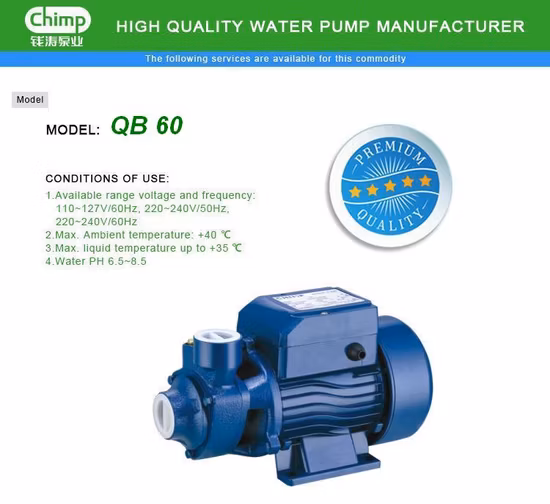

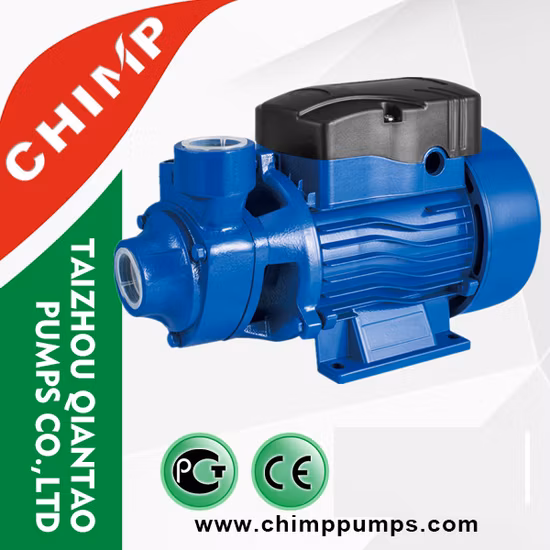

0.5HP Small Size Homeuse Qb60 Vortex Water Pumps
Description
Basic Info
| Model NO. | QB60 |
| Max.Head | 30-50m |
| Max.Capacity | 50-100 L/min |
| Material | Cast Iron |
| Structure | Single-stage Pump |
| Assembly | Booster Pump |
| Power | Electric |
| Start Up | Electric Pump |
| Type | Vortex Pump |
| Application | Clarified Water Pump, Clean Water |
| Industry | Water Pump |
| Media | Clean Water |
| Performance | High Pressure |
| Theory | Vortex Pump |
| Pumpbody | Cast Iron |
| Casing | Al. |
| Impeller | Brass |
| Motor Wounding | Copper |
| Voltage | 110/127V/220V |
| Frq | 50Hz/60Hz |
| Hmax. | 20-35m |
| Qmax. | 25-35L/Min |
| Color | Any Color(Mix.Qty 100PCS) |
| Transport Package | Strong Carton Box |
| Specification | 33x18x21cm |
| Trademark | CHIMP or OEM |
| Origin | China |
| HS Code | 841360 |
| Production Capacity | 1000 PCS/Day |
Product Description
PUMP INSTALLATION AND APPLICATIONS
It can be used to transfer clear water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
EXPLOSIVE VIEW
| NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION | NO. | DESCRIPTION |
| 1 | pump body | 9 | "O" ring | 17 | Rotor | 25 | Screw |
| 2 | "O" ring | 10 | Blot | 18 | Split ring | 26 | Terminal board |
| 3 | Charge plug | 11 | Pump support | 19 | Back cover | 27 | Capacitor |
| 4 | Impeller | 12 | Drops guard | 20 | Fan | 28 | Terminal box cover |
| 5 | Key | 13 | Bearing | 21 | Fan cover | 29 | Screw |
| 6 | Snap ring | 14 | Snap ring | 22 | Housing | ||
| 7 | Washer | 15 | Blot | 23 | Fairlead | ||
| 8 | Mechanical Seal | 16 | Wound stator | 24 | Cable presser |
| MODEL | POWER | MAX.FLOW | MAX.HEAD | MAX.SUCT | INLET/OUTLET | GW | PACKING DIMENSION(MM) | |
| kW | HP | (l/min) | (M) | (M) | (inch) | (kgs) | ||
| QB60-1 | 0.37 | 0.5 | 35 | 35 | 8 | 1" x 1" | 4.8 | 26.5*12*16 |
| QB70-1 | 0.55 | 0.75 | 50 | 45 | 8 | 1" x 1" | 8.2 | 34*18*20.5 |
| QB80-1 | 0.75 | 1.0 | 60 | 50 | 8 | 1" x 1" | 9.2 | 34*18*20.5 |
| QB60 | 0.37 | 0.5 | 35 | 35 | 8 | 1" x 1" | 5 | 26.5*13*16 |
| QB70 | 0.55 | 0.75 | 50 | 45 | 8 | 1" x 1" | 8.5 | 34*18*20.5 |
| QB80 | 0.75 | 1.0 | 60 | 50 | 8 | 1" x 1" | 9.5 | 34*18*20.5 |
. Taizhou Qiantao(CHIMP) Pumps is located in Daxi town, Wenling City, Zheijiang province, China, where is the hometown of water pump.
. CHIMP Pump is establisd in 1996 with more than 20 years of manufacturing water pumps.
.Our major products are water pumps, deep well pumps and electric motors. We have more than 50 series and over 1000 varieties of products.
. CHIMP pump are sold well in more than 20 provinces in China and exported to all over the world with good feedback.
FAQ
| Q: What is your MOQ of this item? |
| A: Our MOQ is 100 pcs. For the first time, small quantities will also be ok. |
| Q: Is it acceptable to make customers' own brand? |
| A: Sure, we can do OEM. |
| Q: What are your payment terms? |
| A: 30% T/T deposit by TT in advance, rest against the copy of B/L. |
| Q: How long is your warranty? |
| A: One year! If any problems, welcome to contact with us. |
| Q: What is the delivery time? |
| A: 30 days after receicving deposit. 40 days in very busy season. |
